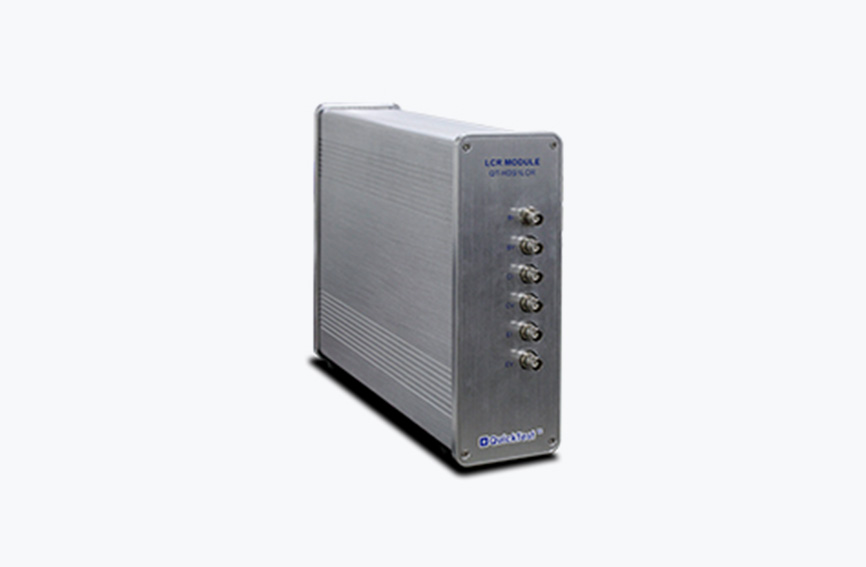

QT-3107 LCR RG/CG test
Self-developed LCR digital bridge supports Mosfet RG/CG testing and can also be used to test the capacitance of diodes with a resolution of 1fF.
|
Support double DIE |
High precision and anti-interference |
Fast testing |
Extended 2KV bias |
| Model | QT-3107 |
| Product Advantages |
Using digital bridge, it has strong anti-interference ability and high test accuracy; The test time is 2-3 times faster than the analog bridge; Bias voltage up to 2KV; |
| Key Features |

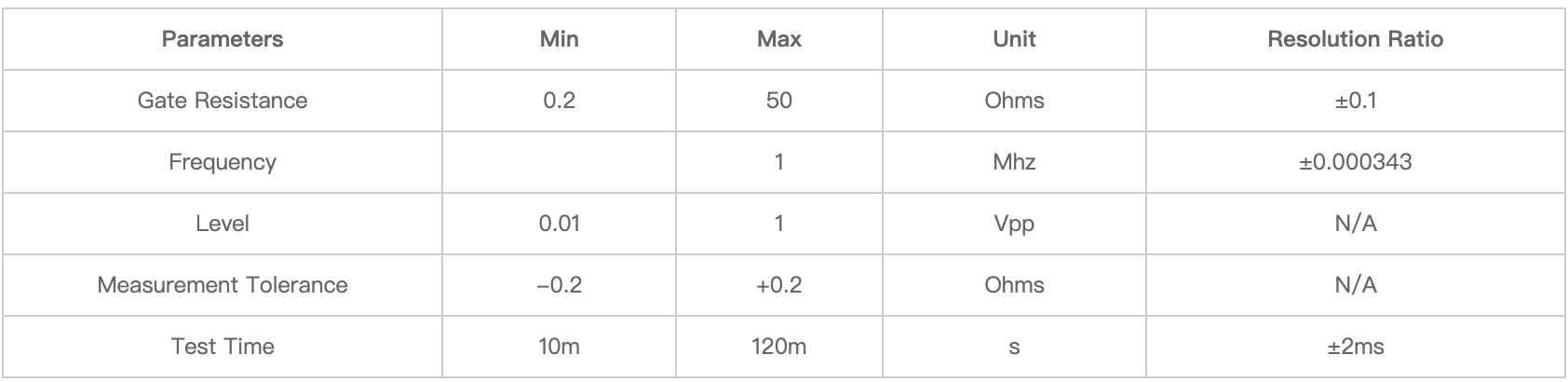

Test resolution 1fF; Self-equipped with ±100V bias source; Test frequency: 1MHz, extended to 2MHz; Output amplitude: 0.025-2V; |
