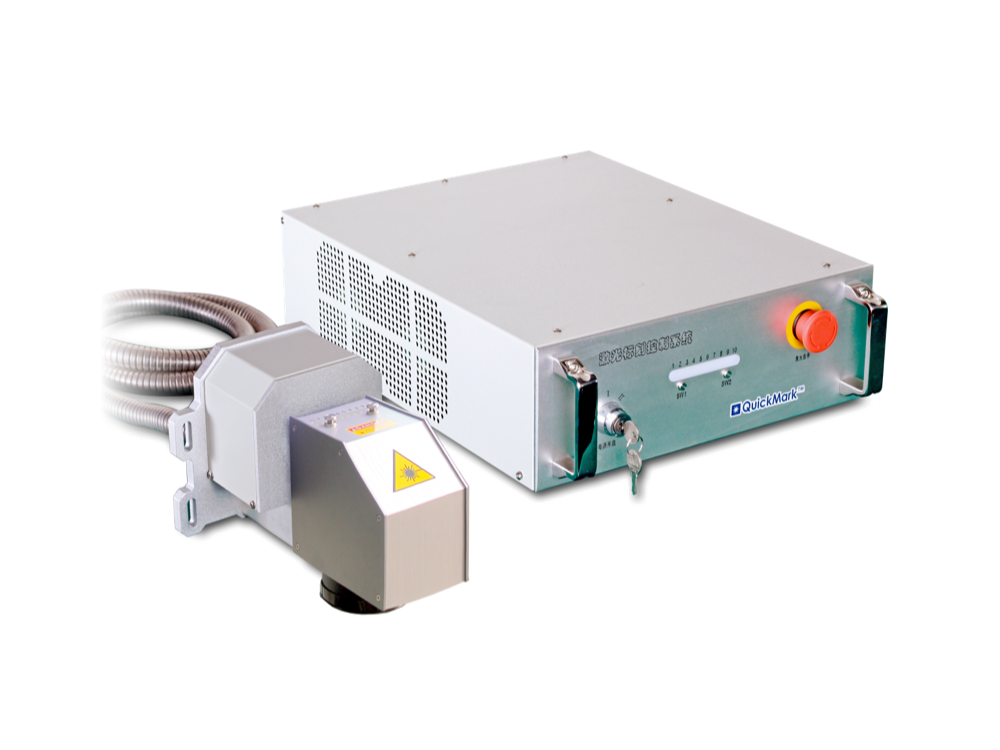

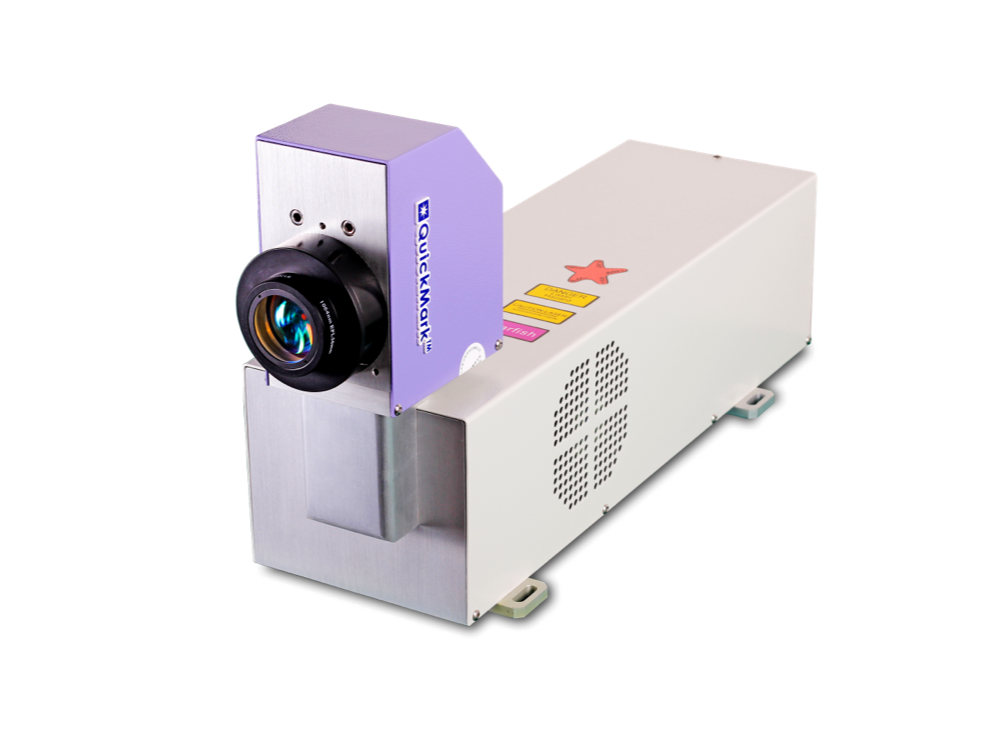

5W/10W/20W continuous fiber laser marking machine
With high-speed turret Handler, it is suitable for QFN, SM, SOT, SOD series and other devices
|
Suspended power supply |
Multiple sites in parallel |
Multi-channel high precision |
Supports multiple extensions |
| Type | 5W/10W/20W Continuous fiber laser marking machine |
| Advantages |
The whole machine has compact structure, small size, strong anti-interference, high stability and long life. The software control system and mechanical working system are independently developed to ensure the stability and compatibility of the entire system and facilitate customer upgrades. |
| Main Features |
? Laser center wavelength: 1064nm ? Laser output power: 5, 10, 20W ? Marking range: 50X50mm, 70X70mm, 100X100mm, etc. optional ? Minimum print line width:0.018mm ? Minimum font height:：0.12mm ? Laser frequency：20~80KHz ? Input power220V±10%/50Hz ? Applicable packaged devices: various semiconductor discrete devices, IC and metal packaged devices |
